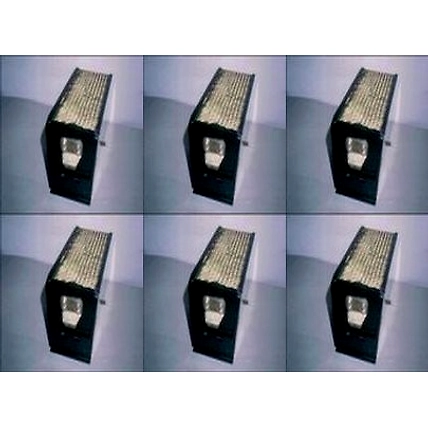

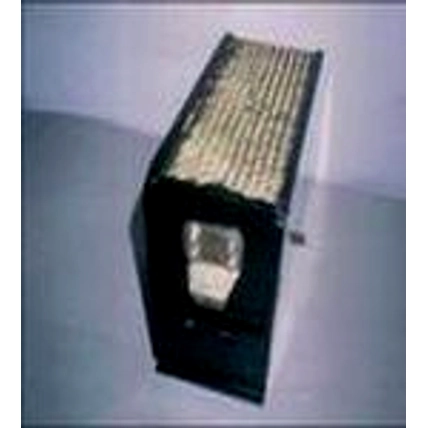

The arc chamber in an air circuit breaker operating between 440V & 600V is a critical component designed to manage and extinguish the electrical arc formed during circuit interruption. Constructed from high-conductivity electrolytic-grade copper with customizable silver plating, the arc chamber offers exceptional durability and efficient thermal dissipation. Its precision-engineered internal baffles and optimized geometry facilitate rapid arc quenching by redirecting and cooling the arc plasma, thereby reducing energy transfer and preventing re-ignition. This controlled arc interruption safeguards the breaker’s contacts and insulation from excessive thermal and mechanical stress. Additionally, the chamber’s robust design minimizes erosion and prolongs service life under repetitive fault conditions. By ensuring reliable arc management, the arc chamber contributes to enhanced overall performance, safety, and longevity of the air circuit breaker in demanding industrial and commercial applications. Its innovative design not only meets stringent industry standards but also supports sustainable operation and system resilience consistently.

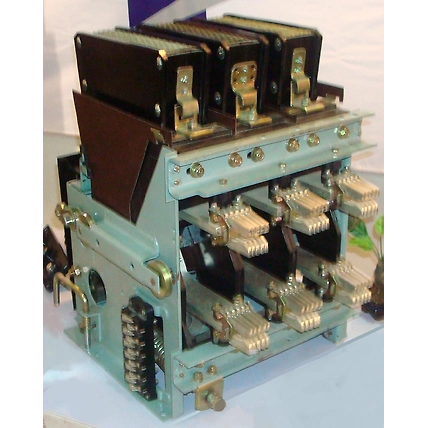

In modern air circuit breakers designed for voltage applications between 440V and 600V, the arc chamber is a critical component responsible for the safe interruption of electrical faults. Constructed from high-conductivity electrolytic-grade copper, often enhanced with a customizable 6-micron silver plating, the arc chamber provides superior electrical performance and excellent thermal management under high stress. Its robust construction is essential for withstanding the extreme temperatures and mechanical forces generated during arcing events.
Inside the arc chamber, a series of precisely engineered baffles and partitioning structures work in concert to divide and elongate the arc. By increasing the arc’s surface area, these baffles promote rapid cooling and ion recombination, which in turn facilitates quick arc extinction. This design minimizes the energy transfer and prevents the re-ignition of the arc, thereby protecting the breaker’s contacts and insulation from excessive wear and damage.
Moreover, the chamber’s geometry is optimized for effective gas flow and heat dissipation, ensuring that any generated thermal energy is quickly dispersed. This rapid heat management is crucial for maintaining operational stability and prolonging the service life of the circuit breaker, especially under repetitive fault conditions. Overall, the arc chamber’s sophisticated design not only meets stringent industry safety and performance standards but also significantly enhances the reliability and longevity of air circuit breakers in demanding industrial and commercial environments.
