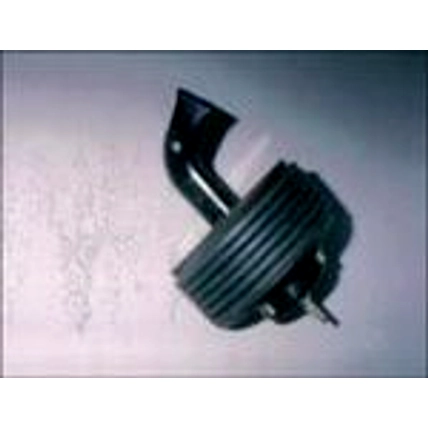

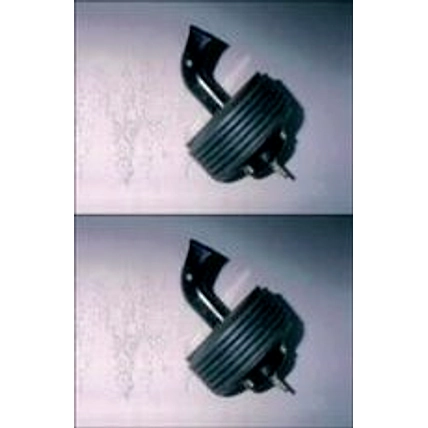

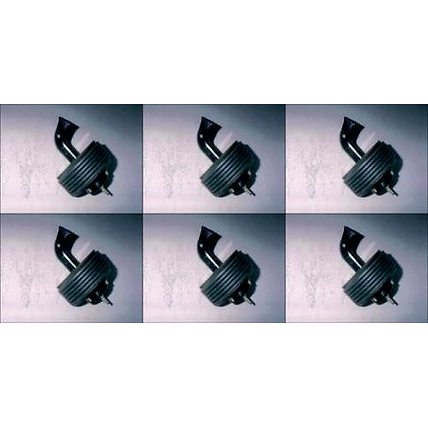

### **Air Puffer for 6.6/11KV Air Circuit Breaker – Uses & Construction**
#### **Uses:**
The air puffer plays a critical role in arc extinction within 6.6KV and 11KV air circuit breakers (ACBs). During breaker operation, an electric arc forms between contacts due to the sudden interruption of current flow. The air puffer generates a high-pressure air blast that rapidly cools and disperses the arc plasma, effectively breaking the electrical path and preventing re-ignition. This enhances circuit breaker performance by ensuring fast, reliable arc extinction, reducing contact wear, and improving system safety. Air puffers are commonly used in industrial power systems, electrical substations, and heavy machinery applications where reliable arc quenching is essential.
#### **Methods of Construction:**
The air puffer is constructed using heat-resistant and non-conductive materials, such as reinforced polymers and high-strength metal alloys. The primary components include a **puffer cylinder**, **nozzle**, and **actuation system**, which may be self-actuated (mechanically driven by breaker movement) or powered by an external pneumatic source. The nozzle is precisely engineered to direct the air blast toward the arc, optimizing cooling and dissipation. The assembly is designed for durability, withstanding thousands of operations under high-voltage stress conditions. Advanced designs may incorporate **multi-stage puffing mechanisms** to enhance efficiency and minimize energy loss during circuit breaker operation.
This well-engineered system ensures extended breaker lifespan, improved reliability, and enhanced operational safety in medium-voltage applications.
